01 / Overview

Spatial intelligence, without an external 3D stack.

Vision-language models are strong semantic reasoners, but their spatial representations remain weak. Existing approaches often add explicit 3D priors or third-party spatial encoders, increasing complexity and weakening general-purpose capabilities after fine-tuning.

SpatioLM introduces a parameter-efficient, non-invasive Spatio-Vision Module that elicits spatial knowledge already present in a pretrained VLM. During training, pseudo depth and camera information guide the model toward physically coherent representations. At inference, the model operates directly on images or video, without extra 3D inputs.

Across spatial perception, spatial understanding, and embodied manipulation, the framework delivers broad gains while limiting degradation of the base model's general capabilities. On VSI-Bench, SpatioLM reaches 71.6, the first reported score above 70.

A

Perception

Reason about metric depth, distance, speed, and physically grounded visual measurements.

RGB-only inference

B

Understanding

Resolve object relations, room geometry, temporal order, and multi-view spatial structure.

Image + video

C

Action

Transfer learned spatial representations to discrete and continuous manipulation policies.

Embodied downstream tasks

02 / Method

Frozen backbone. Plug-and-play spatial reasoning.

The Spatio-Vision Module is inserted alongside selected vision-language blocks and trained with geometric supervision, preserving the pretrained VLM path.

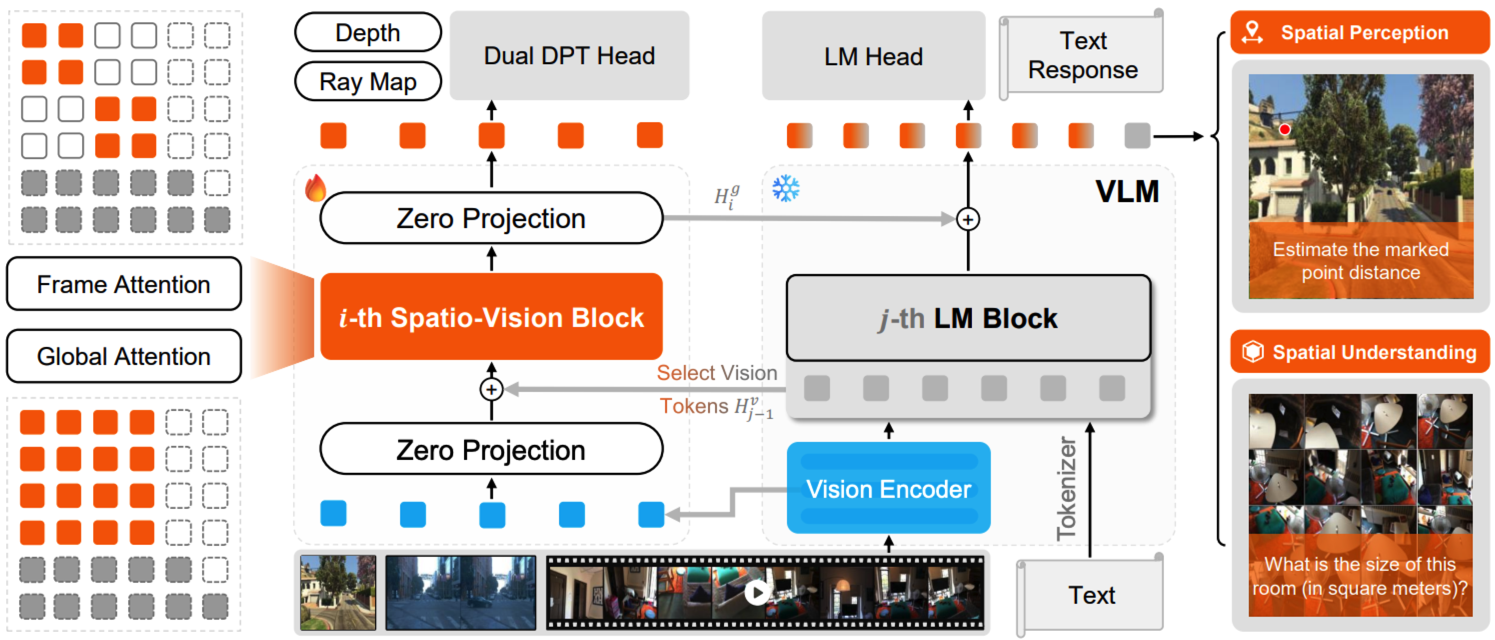

SpatioLM architecture with a Spatio-Vision block, zero projection layers, depth and ray-map supervision, and a frozen VLM

01
Elicit
Reuse pretrained visual tokens instead of attaching a separate spatial encoder.
02
Supervise
Distill token, depth, and camera-ray knowledge from a geometry teacher during training.
03
Preserve
Keep the underlying VLM frozen and activate spatial reasoning only when needed.

03 / Experiments

Consistent gains across perception, reasoning, and action.

SpatioLM is evaluated against proprietary, open-source, and spatial-specialized models across four perception benchmarks, three spatial understanding benchmarks, general VLM tasks, and LIBERO.

Metric depth+30.9

MD-S over SenseNovaSI-8B

Spatial reasoning71.6

First VSI-Bench result above 70

3D question answering101.8

ScanQA CIDEr

Embodied manipulation96.3

LIBERO average success

Qualitative tasks for metric depth, relative depth, and depth-related reasoning — Qualitative depth tasks on MD-S, MD-M, DA-2K, and DR.

Spatial perception

Overall depth benchmark results

MD-S and MD-M use δ < 1.25. DA-2K and DR report accuracy. Higher is better.

Method	MD-S	MD-M	DA-2K	DR
Proprietary models
GPT-5.2	15.5	21.4	56.0	11.2
Gemini-2.5 Flash	28.6	28.7	75.5	9.87
Qwen3-VL Plus	37.6	37.9	79.4	17.5
Doubao-1.5 Thinking	52.6	41.1	80.7	13.6
Open-source models
LLaVA-NeXT-Video-7B	9.24	10.0	51.2	6.46
Qwen2.5-VL-72B	32.9	31.5	64.0	12.4
InternVL3.5-8B	41.0	28.3	60.3	10.2
Qwen3-VL-235B-A22B	48.4	39.9	73.4	17.2
Specialized spatial models
Cosmos-R1-7B	19.4	25.4	53.1	7.01
VST-7B-SFT	51.0	26.3	83.8	10.9
Cambrian-S-7B	3.09	3.21	53.7	1.74
SenseNovaSI-8B	52.6	37.7	71.8	17.5
DepthLM (Pixtral-12B)	18.0	40.0	-	11.9
SpatioLM
SpatioLM_{InternVL3.5-8B}	50.9	32.0	81.7	24.1
SpatioLM_{SenseNovaSI-8B}	83.5	69.0	83.8	41.8

Best and runner-up results are bolded and underlined. API and open-source baselines marked with * in the paper were re-evaluated under official settings.

Spatial understanding

VSI-Bench

Eight categories spanning configuration, metric estimation, navigation, and spatiotemporal reasoning.

Method	Avg.	Obj. count	Abs. dist.	Obj. size	Room size	Rel. dist.	Rel. dir.	Route plan	Appr. order
Proprietary and open-source models
GPT-4o	34.0	46.2	5.3	43.8	38.2	37.0	41.3	31.5	28.5
Gemini-2.5 Pro	51.5	43.8	34.9	64.3	42.8	61.1	47.8	45.9	71.3
LLaVA-OneVision-72B	40.2	43.5	23.9	57.6	37.5	42.5	39.9	32.5	44.6
LLaVA-NeXT-Video-72B	40.9	48.9	22.8	57.4	35.3	42.4	36.7	35.0	48.6
InternVL3.5-8B	56.1	70.7	43.3	68.1	63.6	55.6	49.1	36.6	61.5
Qwen2.5-VL-7B	32.7	34.5	19.4	47.6	40.8	32.8	24.5	32.5	29.4
Qwen3-VL-235B-A22B	51.0	60.6	41.6	73.5	63.8	47.7	43.7	35.1	42.1
Specialized spatial models
Spatial-MLLM-4B	48.4	65.3	34.8	63.1	45.1	41.3	46.2	33.5	46.3
VLM-3R-7B	60.9	70.2	49.4	69.2	67.1	65.4	80.5	45.4	40.1
GS-Reasoner (w/d)	64.7	69.1	61.9	70.0	65.7	65.4	88.9	44.3	52.3
Cambrian-S-7B	67.5	73.2	50.5	74.9	72.2	71.1	76.2	41.8	80.1
VST-SFT-7B	60.6	72.0	44.4	74.3	68.3	59.7	55.8	44.9	65.2
SenseNovaSI-8B	68.7	75.7	53.2	72.8	67.5	77.0	72.7	48.5	82.6
SpatioLM
SpatioLM_{InternVL3.5-8B}	65.0	76.1	50.9	73.6	65.1	73.3	70.1	44.3	66.9
SpatioLM_{SenseNovaSI-8B}	71.6	81.9	55.7	75.2	71.5	78.2	74.4	47.9	87.8

3D question answering

ScanQA and SQA3D

ScanQA reports language metrics; SQA3D reports exact-match accuracy.

Method	B1	B4	METEOR	ROUGE-L	CIDEr	E1	ER1
ScanQA	30.2	10.1	13.1	33.3	64.9	47.2	-
SQA3D	30.5	11.2	13.5	34.5	-	46.6	-
Qwen2.5-VL-72B	26.8	12.0	13.0	35.2	66.9	47.0	50.9
InternVL3.5-8B	35.1	8.12	14.6	39.4	74.2	51.0	54.0
Qwen3-VL-8B	14.1	8.34	11.6	35.8	63.0	47.2	51.4
SenseNovaSI-8B	26.4	0.00	13.4	37.6	70.0	47.8	50.1
VST-7B-SFT	8.43	0.50	9.63	41.9	82.1	45.7	48.7
Spatial-MLLM-4B	44.4	14.8	18.4	45.0	91.8	55.9	58.7
SpatioLM_{InternVL3.5-8B}	45.4	16.2	19.0	47.5	98.2	55.3	57.7
SpatioLM_{SenseNovaSI-8B}	48.4	16.3	19.8	48.9	101.8	56.5	58.6

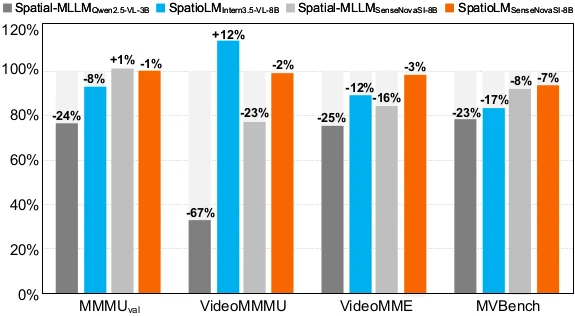

Relative performance change on general capability benchmarks for SpatioLM and Spatial-MLLM — Relative performance change after spatial fine-tuning.

General-purpose capability

Limited catastrophic forgetting

Across VideoMME, MVBench, MMMU, and VideoMMMU, both SpatioLM variants retain average performance within 4% of their frozen base models. Spatial-MLLM drops by 44% under the same aggregate view.

Method	Avg.	VideoMME	MVBench	MMMU	VMMMU-P	VMMMU-C	VMMMU-A
Base InternVL3.5-8B	52.8	65.2	73.2	56.3	35.7	50.7	35.7
SpatioLM_{InternVL3.5-8B}	50.5 -4%	57.7	60.5	51.8	35.0	42.0	55.7
Base SenseNovaSI-8B	49.8	62.5	65.6	50.6	53.0	36.3	30.7
SpatioLM_{SenseNovaSI-8B}	48.1 -3%	60.7	60.7	50.1	51.7	33.7	31.7
Base Qwen2.5-VL-3B	49.8	58.5	67.0	47.2	56.3	39.7	30.3
Spatial-MLLM_{Qwen2.5-VL-3B}	27.9 -44%	43.6	51.9	35.7	10.0	7.33	18.7

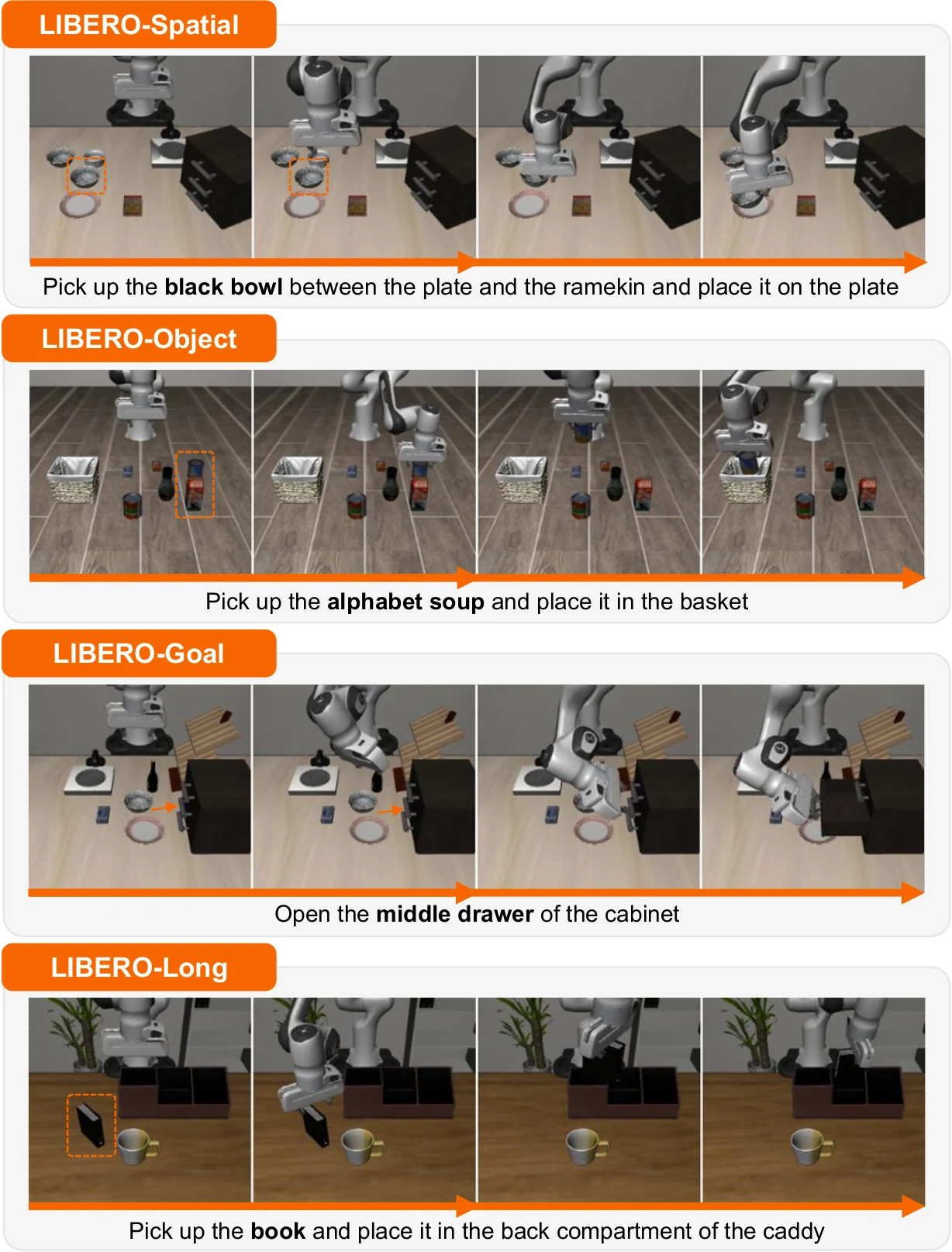

Qualitative LIBERO manipulation trajectories for SpatioLM — Qualitative results on LIBERO. Each score averages 500 trials per suite.

Embodied manipulation

LIBERO across four suites

Method	Pretrain	Action	Spatial	Object	Goal	Long	Avg.
OpenVLA	Yes	D	84.7	88.4	79.2	53.7	76.5
SpatialVLA	Yes	D	88.2	88.9	78.6	55.5	78.1
π₀-FAST	Yes	D	96.4	96.8	88.6	60.2	85.5
FlowVLA	No	D	93.2	95.0	91.6	72.6	88.1
UniVLA	Yes	D	96.5	96.8	95.6	92.0	95.2
SmolVLA	No	C	93.0	94.0	91.0	77.0	88.8
OpenVLA-OFT	No	C	94.3	95.2	91.7	86.5	91.9
GR00T-N1	Yes	C	94.4	97.6	93.0	90.6	93.9
π₀	Yes	C	96.8	98.8	95.8	85.2	94.2
DepthVLA	No	C	96.4	98.0	95.8	89.2	94.9
SenseNovaSI-VLA0	No	D	93.8	84.0	79.4	59.4	79.2
SenseNovaSI-OFT	No	C	92.2	98.6	96.4	93.8	95.3
SpatioLM-VLA0	No	D	95.6	97.2	92.8	78.6	91.0
SpatioLM-OFT	No	C	93.4	99.0	97.8	94.8	96.3

D: discrete actions. C: continuous actions. SpatioLM uses a 2B backbone without large-scale robot manipulation pretraining.

04 / Qualitative Results

From metric geometry to situated reasoning.

Examples expose both final language answers and intermediate depth or camera-ray representations across images and videos.

Qualitative results for single-image depth, multi-image depth, relative depth, and depth-related reasoning — **Spatial perception.** Metric depth, relative depth, and depth-related physical reasoning.

Spatial perception

Overall depth benchmarks

Full comparison ↑

Method	MD-S	MD-M	DA-2K	DR
Representative baselines
GPT-5.2	15.5	21.4	56.0	11.2
Gemini-2.5 Flash	28.6	28.7	75.5	9.87
Qwen3-VL Plus	37.6	37.9	79.4	17.5
InternVL3.5-8B	41.0	28.3	60.3	10.2
VST-7B-SFT	51.0	26.3	83.8	10.9
SenseNovaSI-8B	52.6	37.7	71.8	17.5
SpatioLM
SpatioLM_{InternVL3.5-8B}	50.9	32.0	81.7	24.1
SpatioLM_{SenseNovaSI-8B}	83.5	69.0	83.8	41.8

+30.9MD-S over base

+31.3MD-M over base

+24.3DR over base

MD-S and MD-M use δ < 1.25; DA-2K and DR report accuracy. Higher is better.

Spatial understanding

VSI-Bench

Full comparison ↑

Method	Avg.	Obj. count	Abs. dist.	Obj. size	Room size	Rel. dist.	Rel. dir.	Route	Order
Representative baselines
GPT-4o	34.0	46.2	5.3	43.8	38.2	37.0	41.3	31.5	28.5
Gemini-2.5 Pro	51.5	43.8	34.9	64.3	42.8	61.1	47.8	45.9	71.3
InternVL3.5-8B	56.1	70.7	43.3	68.1	63.6	55.6	49.1	36.6	61.5
GS-Reasoner	64.7	69.1	61.9	70.0	65.7	65.4	88.9	44.3	52.3
Cambrian-S-7B	67.5	73.2	50.5	74.9	72.2	71.1	76.2	41.8	80.1
SenseNovaSI-8B	68.7	75.7	53.2	72.8	67.5	77.0	72.7	48.5	82.6
SpatioLM
SpatioLM_{InternVL3.5-8B}	65.0	76.1	50.9	73.6	65.1	73.3	70.1	44.3	66.9
SpatioLM_{SenseNovaSI-8B}	71.6	81.9	55.7	75.2	71.5	78.2	74.4	47.9	87.8

71.6VSI-Bench average

81.9Object counting

87.8Appearance order

Eight categories cover measurement, configuration, navigation, and spatiotemporal reasoning.

Supplementary visualizations

Appendix qualitative results

Appendix examples for single-image metric depth and DA-2K relative depth — MD-S and DA-2K across unseen indoor, outdoor, non-real, and object-centric domains.

Appendix multi-image metric depth examples — Multi-image metric depth across NRGBD, ScanNet, and KITTI scenes.

Appendix depth-related reasoning examples with depth and camera-ray predictions — Depth-related reasoning with predicted depth maps and camera-ray constraints.

Appendix VSI-Bench examples part one — Eight VSI-Bench task categories spanning metric, configurational, and spatiotemporal reasoning.

Appendix VSI-Bench examples part two — Eight VSI-Bench task categories spanning metric, configurational, and spatiotemporal reasoning.

05 / Appendix Analysis

Why the spatial side path works, and where it does not.

Supplementary experiments isolate parameter efficiency, supervision, architecture choices, cross-domain depth gains, and remaining temporal limitations.

A

Comparable-budget LoRA

The non-invasive side path is stronger than directly adapting the backbone.

Method	VSI	ScanQA C	SQA3D ER1
LoRA, r=16, α=64	69.8	97.2	55.7
SpatioLM	71.6	101.8	58.6

B

Component ablation

VTS and dense geometric supervision provide complementary gains.

SV	VTS	DGS	MD-S	DA-2K	VSI
-	-	-	52.6	71.8	68.7
✓	-	-	74.7	84.0	69.1
✓	✓	-	76.9	82.4	69.6
✓	-	✓	81.5	83.3	70.8
✓	✓	✓	83.5	83.8	71.6

C

Cross-domain depth gains

Both backbones improve across single-image, multi-image, relative-depth, and physical-reasoning tasks.

Backbone	MD-S	Δ	MD-M	Δ	DA-2K	Δ	DR	Δ
InternVL3.5-8B	41.0 → 50.9	+9.9	28.3 → 32.0	+3.7	60.3 → 81.7	+21.4	10.2 → 24.1	+13.9
SenseNovaSI-8B	52.6 → 83.5	+30.9	37.7 → 69.0	+31.3	71.8 → 83.8	+12.0	17.5 → 41.8	+24.3

MD-S includes SUN RGB-D, NYU-v2, and Waymo; MD-M includes NRGBD, ScanNet, and KITTI. Several domains are strictly unseen during training.

D

Architecture choices

Alternating attention improves cross-frame geometry; six SV-Blocks give the best efficiency tradeoff.

Attention	VSI	ScanQA C	ER1
Self	70.4	98.7	56.8
Alternating	71.6	101.8	58.6

SV-Blocks	MD-S	DA-2K	VSI
4	76.5	82.4	71.3
6	83.5	83.8	71.6
8	83.0	83.1	71.7
12	82.9	83.7	71.5

E

Failure consistency

Route planning remains constrained by long-horizon memory inherited from the base VLM.

VSI task	Ours fail	Base fail	Shared	Consistency
Route planning	101	100	96	95.0%
Relative direction	120	166	64	53.3%

F

MVBench degradation analysis

Losses concentrate in motion and action semantics, while several scene-level reasoning tasks are preserved or improve.

Category	Subtask	Δ InternVL3.5	Δ SenseNovaSI
Motion dynamics	Moving direction	-30.5	-25.0
Motion dynamics	Moving attribute	-25.5	-10.5
Motion dynamics	Moving count	-24.0	-3.5
Action semantics	Action antonym	-28.0	-28.0
Action semantics	Action count	-35.5	+5.0
Scene reasoning	Episodic reasoning	+3.0	+0.5
Scene reasoning	Egocentric navigation	+1.5	-5.0

Selected from the full 20-subtask analysis. The paper attributes the tradeoff to geometry-oriented supervision competing with fine-grained temporal cues.

Loss-weight sensitivity0.5 pt

maximum VSI-Bench spread

ScanQA CIDEr range100.2-103.2

across eight configurations

SQA3D ER1 range58.5-60.2

stable objective balance

06 / Open Models

One framework, three physical capabilities.

Official checkpoints are released through the Xiaomi Research collection on Hugging Face.

Checkpoint	Track	Backbone	Link
SpatioLM-Understanding-InternVL3.5	Understanding	InternVL3.5 8B	View →
SpatioLM-Understanding-SenseNovaSI	Understanding	SenseNova-SI 1.1 / InternVL3 8B	View →
SpatioLM-Perception-InternVL3.5	Perception	InternVL3.5 8B	View →
SpatioLM-Perception-SenseNovaSI	Perception	SenseNova-SI 1.1 / InternVL3 8B	View →
SpatioLM-Action-VLA0	Action	SenseNova-SI 1.1 / InternVL3 2B	View →

All checkpoints use the same SpatioLM implementation and require no additional 3D input at inference.

Browse model collection →

07 / Citation

Build on SpatioLM.

If this work supports your research, please cite the ICML 2026 paper.

@inproceedings{wu2026spatiolm,
  title     = {SpatioLM: Towards General Physical Spatial
               Intelligence in Vision-Language Models},
  author    = {Wu, Jing and Wu, Jianhua and Guan, Jiayi and
               Chen, Jiahong and Lu, Jinghui and Ye, Hangjun and
               Gao, Bingzhao and Chen, Long},
  booktitle = {International Conference on Machine Learning},
  year      = {2026}
}

SpatioLM Towards General Physical Spatial Intelligence in Vision-Language Models

Spatial intelligence, without an external 3D stack.

Perception

Understanding

Action

Frozen backbone. Plug-and-play spatial reasoning.

Elicit

Supervise

Preserve

Consistent gains across perception, reasoning, and action.

Overall depth benchmark results

VSI-Bench

ScanQA and SQA3D

Limited catastrophic forgetting

LIBERO across four suites

From metric geometry to situated reasoning.

Overall depth benchmarks

VSI-Bench

Appendix qualitative results

Why the spatial side path works, and where it does not.

Comparable-budget LoRA

Component ablation

Cross-domain depth gains

Architecture choices

Failure consistency

MVBench degradation analysis

One framework, three physical capabilities.

Build on SpatioLM.
